What is the difference between Design for Manufacture and Design for Assembly?

Design for Manufacture (DFM) and Design for Assembly (DFA) are related but distinct engineering disciplines. DFM focuses on simplifying how individual components are produced, while DFA focuses on reducing the complexity of joining those components together into a finished product. Both fall under the broader umbrella of Design for Manufacturability, but they address different stages and constraints in the production process.
Understanding the distinction matters most during early-stage design, when decisions about part geometry, material selection, and joining methods still have room to change. The sections below work through the most common questions engineers and procurement teams ask when applying these principles in practice.

How do DFM and DFA differ in their core objectives?

DFM and DFA differ in their primary focus: DFM aims to make individual parts easier and less costly to produce, while DFA aims to make the final product easier and less costly to assemble from those parts. DFM looks inward at each component; DFA looks outward at how components interact and come together.

Although the two disciplines share the goal of reducing production cost and complexity, they operate on different scopes. A designer applying DFM principles asks whether a given feature on a single part can be machined, cast, or formed more efficiently. A designer applying DFA principles asks whether the overall product architecture requires too many parts, whether fasteners can be eliminated, or whether components can be oriented and inserted without special tooling.

In practice, this means the two methodologies can be applied by different members of a design team, or at different points in a review cycle, even when they are part of the same integrated process.

What does Design for Manufacture actually optimize?

Design for Manufacture optimizes the production of individual components by reducing manufacturing complexity, minimizing material waste, and eliminating features that are difficult or expensive to produce. It targets decisions about geometry, tolerances, surface finish, and material choice at the part level.

Specific DFM considerations include avoiding unnecessarily tight tolerances that drive up machining time, designing features that are compatible with standard tooling, and selecting materials that balance performance requirements against machinability or formability. For cast components, DFM principles guide wall thickness uniformity and draft angles. For machined parts, they influence the placement of holes, slots, and undercuts relative to tool access.

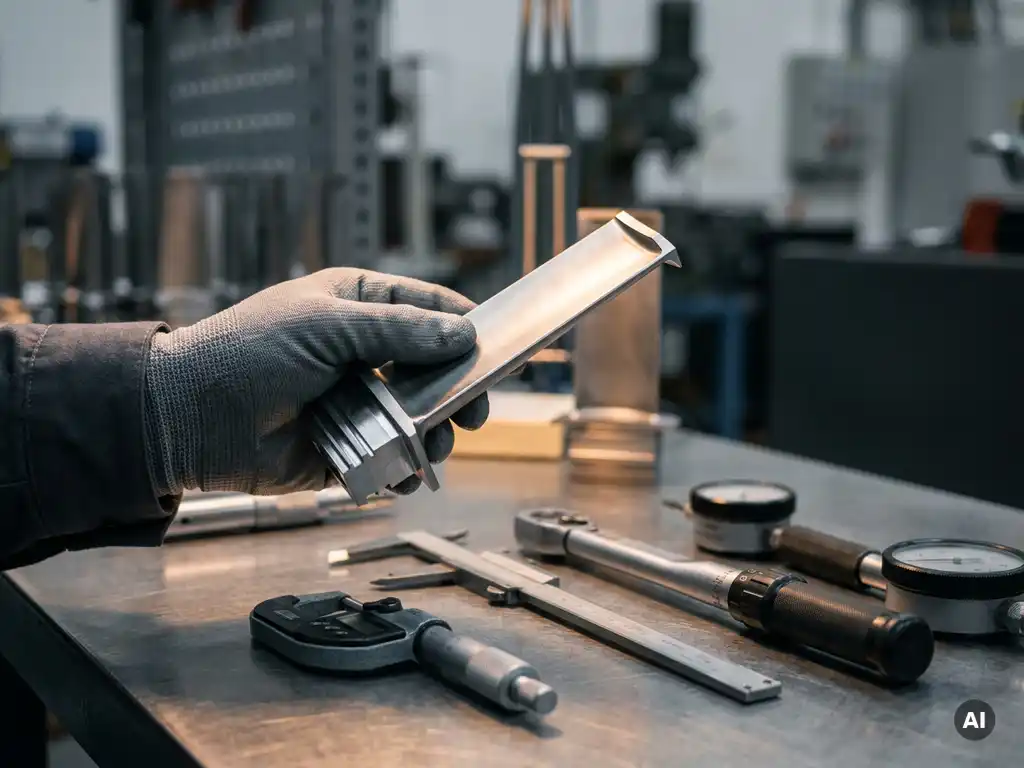

In industries like aerospace engineering, where components must meet exacting performance standards while remaining producible at acceptable cost, DFM decisions made early in a program can have a significant effect on unit cost and lead time throughout a product’s life. A turbine blade geometry optimized purely for aerothermal performance, for example, may require manufacturing workarounds that add cost and cycle time unless production constraints are factored in from the start.

What does Design for Assembly focus on?

Design for Assembly focuses on reducing the time, cost, and error rate involved in combining components into a finished product or subassembly. It achieves this by minimizing part count, simplifying insertion and orientation, and reducing the need for tools or adjustments during assembly.

Key DFA strategies include consolidating multiple parts into a single component where function allows, designing parts with self-locating or self-aligning features, and standardizing fasteners to reduce the number of different tools required on the assembly line. DFA also addresses the sequence in which parts are assembled, aiming to eliminate steps that require repositioning the product or accessing difficult locations.

For complex systems like gas turbine engines, where hundreds of components must be assembled in precise sequence, DFA principles directly affect maintenance intervals as well as initial build time. A component that is difficult to remove for inspection or replacement adds cost not just during manufacture but across the entire service life of the engine.

Can DFM and DFA conflict with each other?

Yes, DFM and DFA can produce conflicting recommendations. A design change that makes a part cheaper to manufacture may make it harder to assemble, and vice versa. These conflicts are common and must be resolved through deliberate trade-off analysis rather than applying either methodology in isolation.

A straightforward example: consolidating two parts into one (a DFA improvement, because it eliminates an assembly step and a fastener) may result in a more complex single part that is harder to machine (a DFM problem). Conversely, splitting a complex part into two simpler pieces to reduce machining cost may add an assembly step and introduce a new joint that requires alignment.

The resolution usually involves quantifying the cost implications on both sides. If the assembly labor saved by consolidation outweighs the additional machining cost, consolidation is the right choice. If not, splitting is preferable. This kind of structured analysis is why DFM and DFA are most effective when applied together, with a clear understanding of where cost is actually being generated in the production system.

When should DFM and DFA be applied in the development cycle?

DFM and DFA should be applied as early as the concept and preliminary design phases, when changes to part geometry, material, and product architecture are still low-cost to implement. Applying these principles after detailed design is complete significantly reduces their impact and increases the cost of any changes made.

The well-documented cost-of-change curve in product development shows that modifications become progressively more expensive as a program advances toward production. A part redesigned during concept definition may require only a few hours of engineering time. The same redesign after tooling has been committed can involve scrapping tooling, revising inspection plans, and requalifying the part.

For programs in gas turbine development, where components undergo extensive aerothermal and structural analysis before design freeze, DFM and DFA reviews should be integrated into formal design review gates rather than treated as a separate downstream activity. This ensures that manufacturing and assembly constraints are visible to the design team at the point when they can still influence the outcome.

Which industries benefit most from applying DFM and DFA together?

Industries with high component complexity, tight performance tolerances, and significant assembly labor costs benefit most from applying DFM and DFA together. Aerospace, gas turbine manufacturing, automotive, and defense are among the sectors where the combined methodology delivers the clearest return.

In aerospace and gas turbine applications, the combination is particularly valuable because components must satisfy demanding aerothermal, structural, and material requirements while remaining producible and maintainable. The cost of a single design iteration in these industries, from analysis through testing, makes early DFM and DFA investment straightforward to justify. In automotive manufacturing, high production volumes mean that even small per-unit savings from DFA part-count reduction or DFM tolerance relaxation accumulate rapidly across a model run.

Defense programs face a different version of the same problem: lower volumes but extreme performance requirements and long service lives, where assembly complexity and maintenance access are as important as initial production cost. Applying DFM and DFA principles in defense component development helps manage through-life costs, not just unit production cost.

How AneCom supports DFM and DFA in aero-engine development

AneCom AeroTest provides engineering services that directly support the application of DFM and DFA principles in aero-engine and gas turbine component development. As an independent development service provider, AneCom works with customers across design, analysis, instrumentation, assembly, and testing, which positions the company to identify manufacturing and assembly constraints early, when they can still influence design decisions.

Design and analysis services that integrate aerothermal performance requirements with producibility constraints from the concept phase onward
Component testing for compressors, combustors, and turbine parts that generates validation data to support design decisions, including those driven by DFM and DFA trade-offs
Assembly and instrumentation expertise that reflects real-world assembly complexity, informing DFA reviews with practical knowledge of how components behave during build and test
Non-destructive testing services that support qualification of components produced under revised manufacturing approaches

If you are working through DFM or DFA challenges on an aero-engine or gas turbine program, contact AneCom to discuss how their engineering services can support your development process.
